Length overall: 40ft 6in

Length on deck: 34ft 10in

Beam: 13ft 3in

Deadrise: 15 degrees

Suggested Power: Twin Mercury Verado 600 hp

Door clear opening: 8ft 4in

Aluminum weight to purchase: Use aluminum plate list, jig parts list, and extrusion list on PDF study plan to calculate.

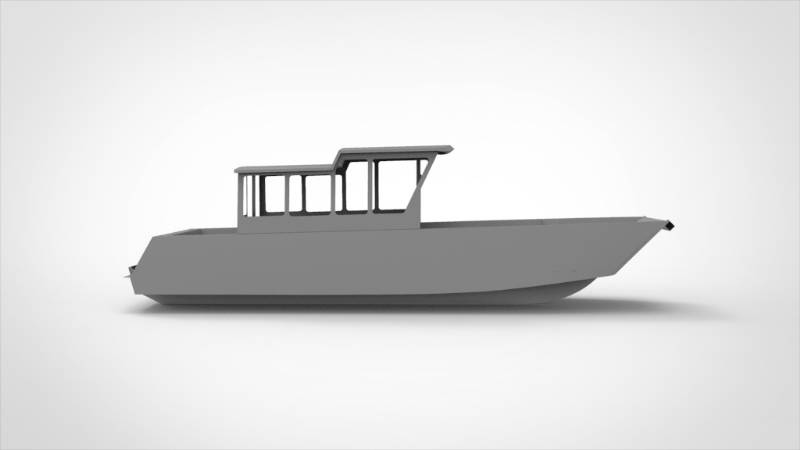

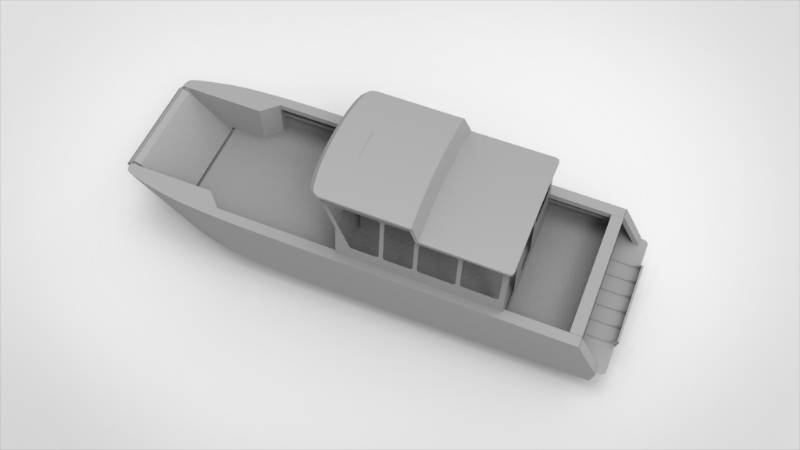

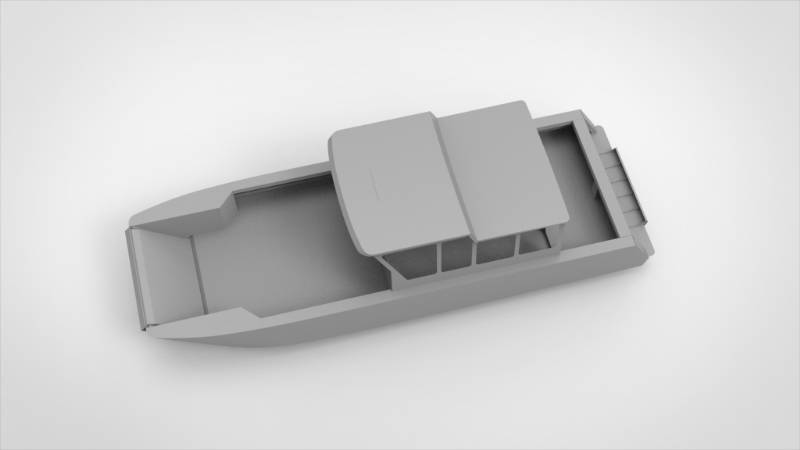

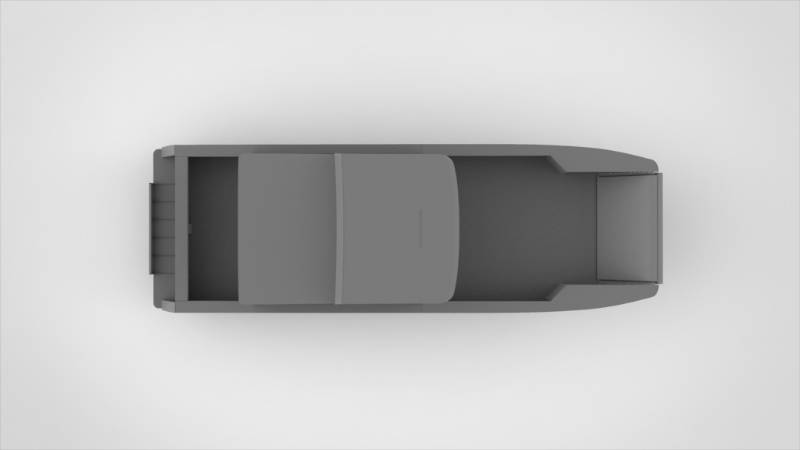

This 13ft full width cabin can load 12 passengers + 1 driver which make this boat useful as a crew boat. Over 13ft long forward cargo deck space, a side access door at aft of the cargo deck on starboard side, a head on port side, and a large fuel capacity at 1,355 litres are desirable features this boat can offer.
